We produce acrylic, polycarbonate (PC) and PVC panels treated with our own anti-static coating. They are used as covers for semiconductor and display equipment and in industrial, bio, pharmaceutical and food cleanrooms.
We coat and produce anti-static panels ourselves, and cut and machine engineering plastics to order.
We produce anti-static panels for semiconductor manufacturing equipment and displays. The hard anti-static coating resists scratches and solvents while keeping the clarity and gloss of the acrylic, PC or PVC sheet.

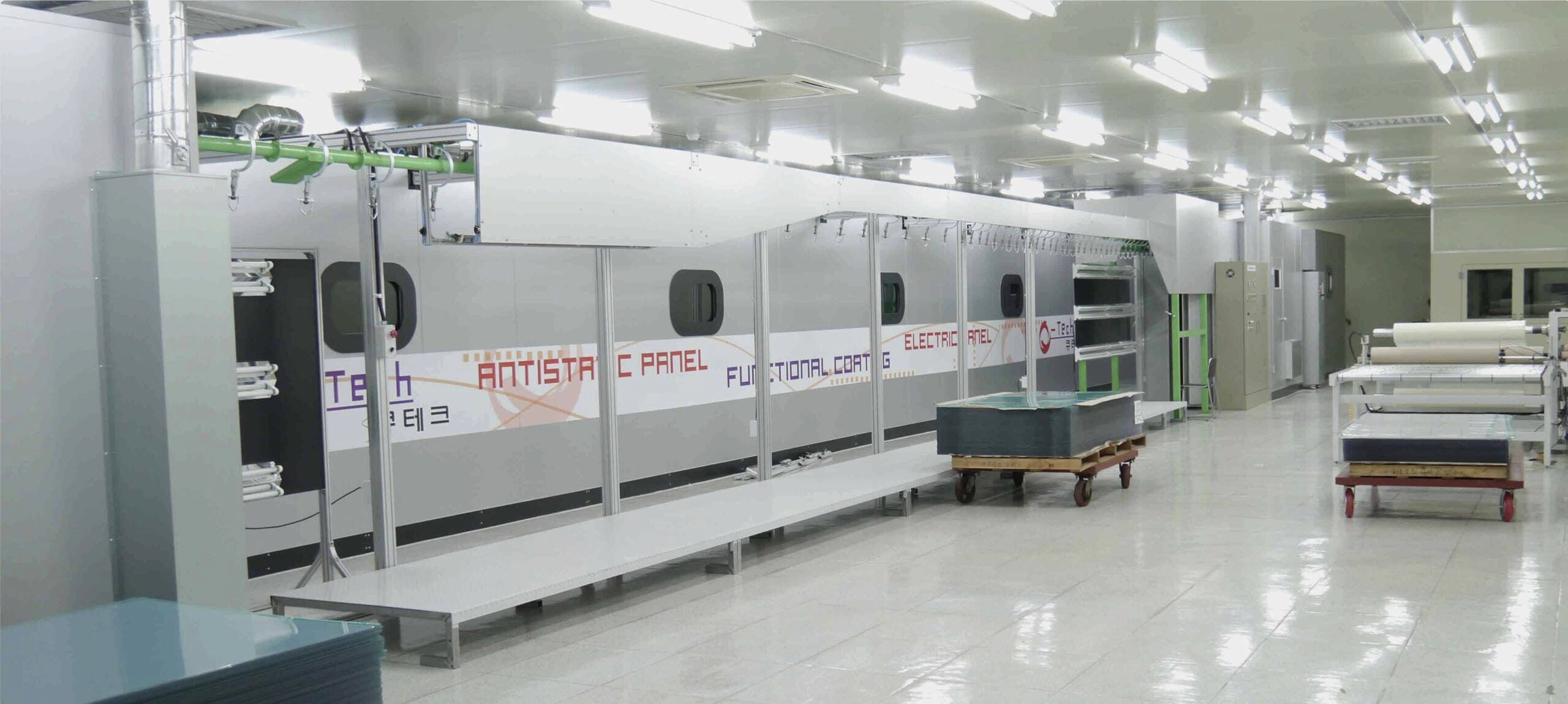

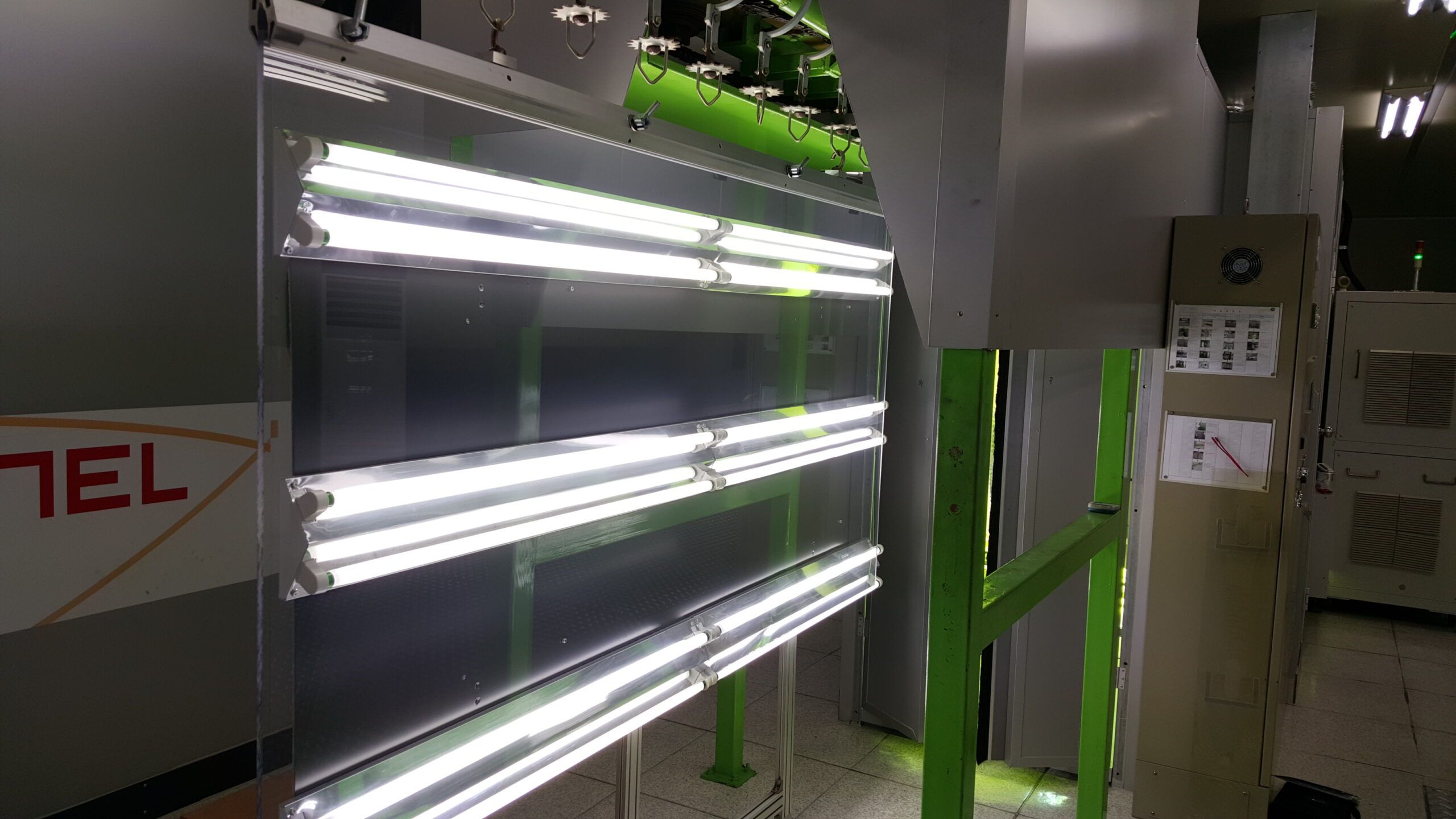

Coating technology

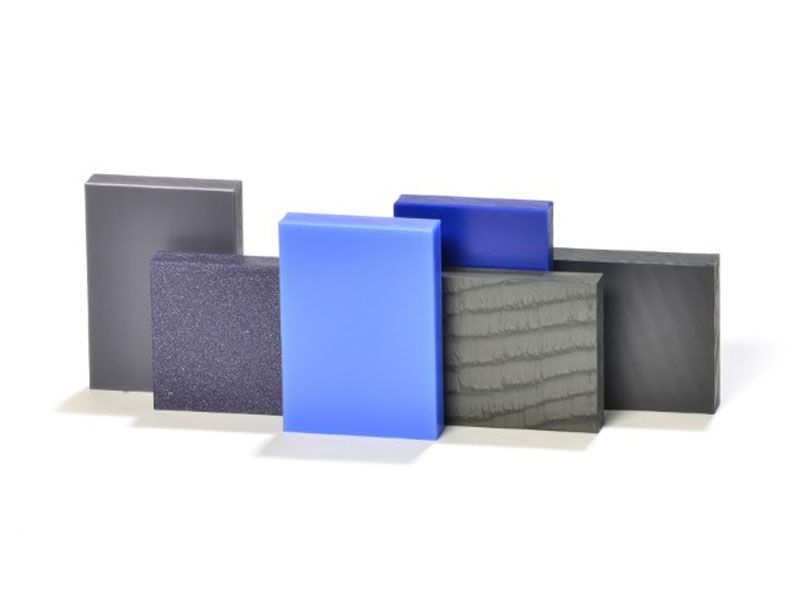

As an authorized Mitsubishi Chemical distributor we supply general-purpose and high-performance engineering plastics, from high-tech to general industrial grades, cut and machined to size.
MaterialsThe coating lowers surface resistance to 106~109 Ω and suppresses static build-up. Three series, by base sheet material.
Optical, electrical and reliability results for the coated surface, with test methods.
Appearance results (dots and pinholes, scratches, gear marks, rainbow effect) are listed on the anti-static panels page.
| Property | Requirement | Test method | Result |
|---|---|---|---|
| Optical and electrical | |||
| Total light transmittance | – | ASTM D1003 | 0.86 |
| Surface resistance | 106~109 Ω | ST-4 | 106 Ω |
| Reliability | |||
| Pencil hardness (Mitsubishi) | 3H or harder | ASTM D3363 | 4H |
| Steel wool abrasion | SW#0000 × 500 g/㎠ × 20 cycles | MSK Method | Good |
| RCA abrasion | 275 g, 80 cycles | Visual inspection | Good |
| Chemical resistance | IPA, methanol, acetone | Visual inspection | Good |
| Adhesion | 100/100 | ASTM D3359 | Good |
| Temperature and humidity | After 72 h at 50 ℃ / 95 % | Visual inspection | Good |

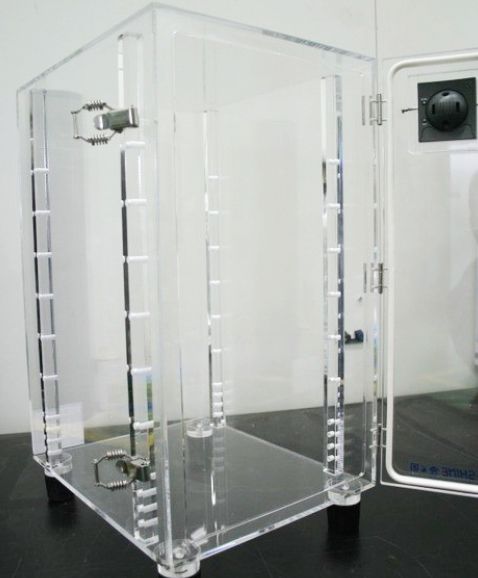

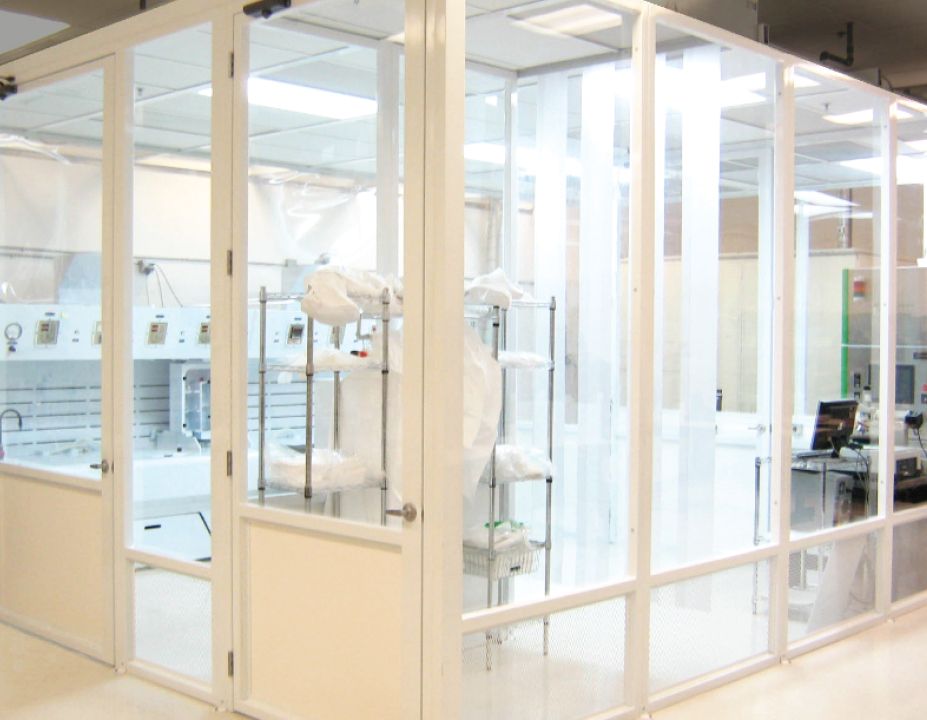

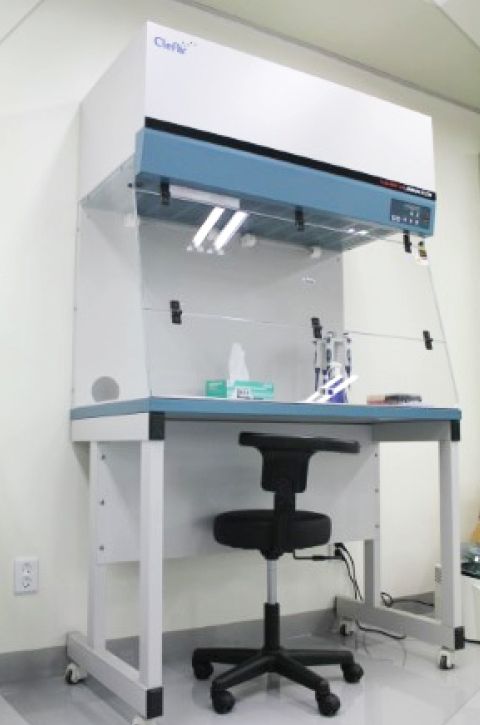

Equipment covers and partitions in production environments that are sensitive to static.
Founded in 2010, Q-Tech specializes in engineering plastics and anti-static panels, supplying materials that cut costs and improve efficiency on the production floor.
An authorized distributor for Mitsubishi Chemical, Ensinger and Röchling, offering a wide range of engineering plastics.
Reach us by phone, email or fax, and also on KakaoTalk, NaverTalk and ChannelTalk. Products can be ordered directly from the ENGP online shop.
Since the 2013 India Plastics Exhibition we have presented our anti-static acrylic and polycarbonate at industrial exhibitions to customers in Korea and abroad.
We produce acrylic, PC and PVC panels with our own anti-static coating technology. They are widely used as covers for semiconductor and display equipment.
Strong, light materials used in machinery, aviation, electrical and electronic parts, and automobiles.
Send us the model, thickness, quantity and drawings you need, and we will get back to you.
